Carrier

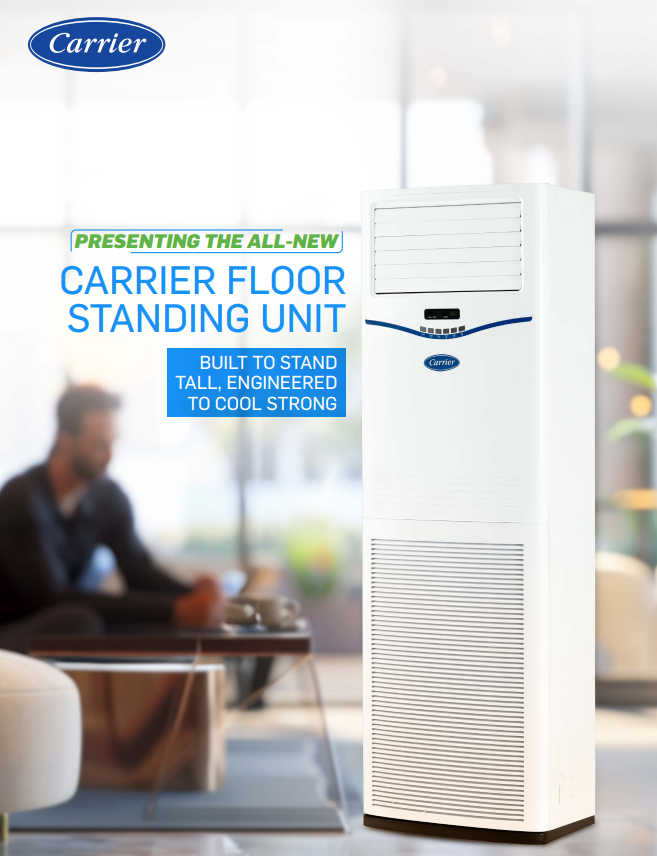

Presenting the All-New
Carrier Floor Standing Unit
Built to Stand Tall, Engineered to Cool Strong
Brought to you from the pioneers of modern air conditioning, the all-new Carrier Floor Standing Unit is an efficient and convenient solution that sets a new benchmark in cooling performance.
The Tall Standard in Efficient Cooling
The Carrier Floor Standing Unit offers a range of advantages that enhance your comfort, seamlessly blending into spaces while delivering optimal indoor environments.
Advanced Airflow
- High airflow of up to 2,070 CMH with long air throw*
- 4-way air swing for effective airflow management
Enhanced Durability
- Engineered with 100% copper coil
- Hydrophilic Blue Fins with protective paint coat on pipe bends for long-lasting unit life
Unmatched Convenience
- Displays set temperature on panel
- Long press 'Ambient' key to display room temperature
- Power-Sel Button to adjust power levels
Elevated Aesthetics
Crafted with a sleek, appealing and tall look to enhance airflow, deliver optimal indoor environments, prioritize comfort and seamlessly blend into spaces.
Streamlined Maintenance
Easily removable air filter and blower in IDU and service valves in ODU to facilitate easy service and maintenance.
* Select models only
Perfected With Expertise
The Carrier Floor Standing Unit leverages the latest technologies to deliver sustainable performance across multiple applications with optimized energy consumption.
Inverter Technology
Experience unmatched comfort, convenience and savings with an inverter cooling solution that delivers continuous, energy-efficient operations without any drastic temperature fluctuations.
BEE 3-Star Rating
Designed for high-performance with optimized energy consumption, the three capacities have been awarded a three-star rating from the Bureau of Energy Efficiency (BEE).
ISEER Value Per Capacity
(7.0kW)
(10.9kW)
(13.5kW)
R32 Refrigerant
The Carrier Floor Standing Unit uses the R32 Refrigerant for a minimized impact on the environment and climate.
Life Cycle Climate Performance
R410A (HFC)
ODP: 0.00
Around 1/3
R32 (HFC)
ODP: 0.00
Remote
Controller
Remarkable Convenience At Your Fingertips
The all-new Carrier Floor Standing Unit comes with an advanced remote controller that offers you a host of benefits all at the touch of a button.
Display Button
Offers an easy-to-read temperature indication where the set temperature is displayed on the panel. Long press the 'Ambient' key to display the room's temperature.
Eco Mode
Maintains the fan speed at minimum and temperature at 24°C in cooling mode for optimal energy savings.
Quiet Mode
Operates the unit at its lowest noise level with a super-low fan speed, ensuring a peaceful environment.
Hi Power
Starts or stops the fast cooling (fast cooling operates at Hi Power speed with 18°C temperature set automatically).
Technical Specifications
| Parameter / Specification |
Inverter
IDU: CFII-070R1-0CSR5 ODU: CFIC-070R1-0CSR5 |
Inverter
IDU: CFII-109R1-0CSR5 ODU: CFIC-109R1-0CSR5 |
Inverter
IDU: CFII-135R1-0CSR5 ODU: CFIC-135R1-0CSR5 |
||
|---|---|---|---|---|---|
| Performance & Electrical Data | |||||
| Capacity Full Load | W | 7,000 | 10,900 | 13,500 | |
| Power Full Load | W | 2,230 | 4,030 | 4,775 | |
| ISEER | W/W | 3.80 | 3.50 | 3.60 | |
| BEE Star Rating | - | 3-Star | 3-Star | 3-Star | |
| Voltage / Phase / Frequency | V/Ph/Hz | 230/1Ph/50Hz | 230/1Ph/50Hz | 230/1Ph/50Hz | |
| Indoor Unit (IDU) | |||||
| Indoor Airflow (T/H/M/L/Q) | m³/h | 1,490 / 1,380 / 1,210 / 1,080 / 1,060 | 2,140 / 1,940 / 1,700 / 1,460 / 1,330 | 2,070 / 1,950 / 1,720 / 1,400 / 1,260 | |
| Indoor Noise (T/H/M/L/Q) | dB(A) | 47 / 45 / 41 / 40 / 38 | 53 / 50 / 47 / 44 / 41 | 53 / 51 / 48 / 44 / 41 | |
| Net Dimensions (DxWxH) | mm | 386 x 600 x 1,850 | 386 x 600 x 1,850 | 386 x 600 x 1,850 | |
| Net/Gross Weight | kg | 56 / 68 | 57 / 69 | 61 / 71 | |
| Outdoor Unit (ODU) | |||||
| Outdoor Noise Levels | dB(A) | 60 | 60 | 65 | |
| Net Dimensions (DxWxH) | mm | 281 x 781 x 555 | 310 x 852 x 692 | 380 x 1,030 x 790 | |
| Net/Gross Weight | kg | 28 / 30 | 42 / 47 | 64 / 68 | |
| Refrigerant Type | - | R32 | R32 | R32 | |
| Piping & Ranges | |||||
| Connecting Pipe | Liquid and Gas Side Dia | mm | 6.35, 15.88 | 9.5, 15.88 | 9.5, 15.88 |
| Maximum Length | m | 25 | 30 | 30 | |
| Maximum Elevation | m | 15 | 15 | 15 | |
| Ambient Operating Range | °C | 48 | 48 | 48 | |
